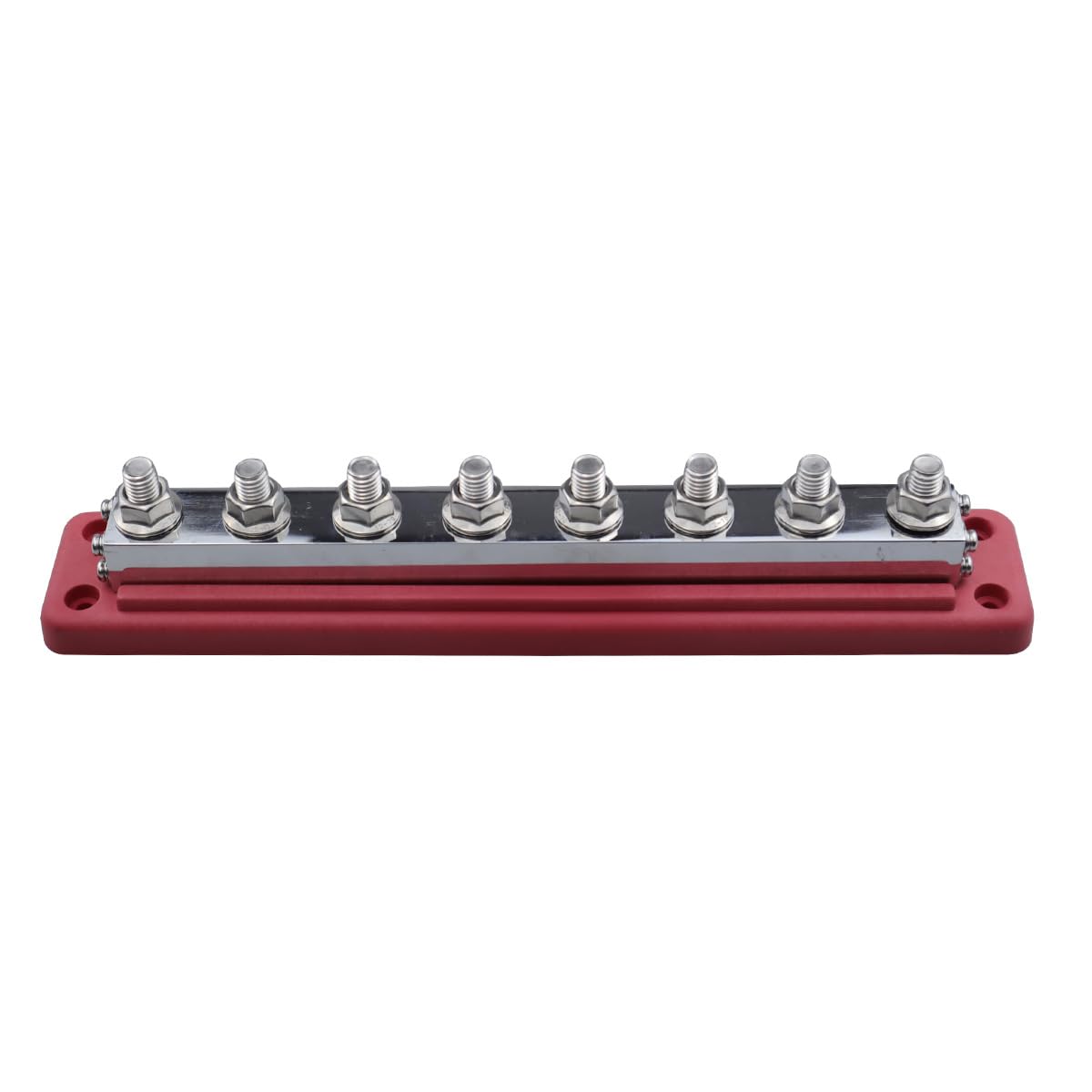

High Current Bus Bar, 600 A 300V AC / 48V DC Power Distribution Block, Copper Battery Bus Bar, Electrical Terminal Ground Distribution Block with Cover

Specifications- Terminal Studs: M10 (3/8 inch) with compatibility for M8, and 8 #8-32 screws.- Dimensions: 289 x 51 x 51 mm (11.37 inches x 2.01 inches x 2.01 inches).- Stud Size: M10 (3/8 inch).- Max Operating Voltage: DC 48V.- Max Continuous Amps: 600AThe Bus Bar is a high-power electrical connection solution that centralizes the management of multiple devices, enhancing electrical continuity and system integrity. It features a robust tin-plated copper distribution block and flame-retardant nylon glass fiber reinforced material for mechanical strength. The 600A busbar includes M10 (3/8 inch) terminal studs and stainless steel components for corrosion resistance. Suitable for a wide range of applications, including vehicles, marine, and solar systems, it ensures reliable electrical distribution and protection.

• The Bus Bar centralizes the management of multiple electrical devices, enhancing electrical continuity and system integrity through its modular connection structure
• RV and yacht bus bar is designed to handle high currents rated at 600A. This makes them suitable for high-power applications
• This distribution block features 0.748 inch (19 mm) thick tin-plated copper, offering high conductivity for high-power applications
• The base and cover are made from flame-retardant nylon glass fiber reinforced material, ensuring mechanical strength and durability
• The 600A busbar is a versatile solution for custom power banks, camp trailers, cars and stereo setup, RVs, trucks, yachts and boats (both fresh and saltwater), solar panel systems
